3-Circuit 230V Track Recessed / 16A Mains voltage recessed track system. Enabling up to three lighting configurations to be set up on one track - controlled & switched individually.

3-Circuit Track 230V Recessed
3-Circuit Track 230V Recessed White
3-Circuit Track 230V Recessed
3-Circuit Track 230V Recessed Silver Grey
3-Circuit Track 230V Recessed
3-Circuit Track 230V Recessed Black
3-Circuit Track 230V Recessed
Dead End
3-Circuit Track 230V Recessed
Centre Feed
3-Circuit Track 230V Recessed
Straight Connector
3-Circuit Track 230V Recessed
X Connector
3-Circuit Track 230V Recessed
Flexible Connector
3-Circuit Track 230V Recessed
Live End TS11
3-Circuit Track 230V Recessed
Live End TS12
3-Circuit Track 230V Recessed
L connector TS34
3-Circuit Track 230V Recessed
L connector TS35
3-Circuit Track 230V Recessed
T connector TS37
3-Circuit Track 230V Recessed
T connector TS36
3-Circuit Track 230V Recessed
T connector TS40
3-Circuit Track 230V Recessed
T connector TS39

Product details & features

The 3-Circuit 230V Recessed track lighting system is the ideal choice for retail lighting, commercial lighting, leisure lighting, restaurant lighting, museum lighting and display lighting.

  • 3-Circuit 230V Recessed track is rated at 16A, giving a maximum lamp load of 3800W across the 3 circuits (e.g. 76 x 50W spotlights).
  • 3-Circuit 230V Recessed track does not come with a Live or Dead End. Live and Dead Ends must be ordered separately.
  • Figure of ‘8’ patterns can be constructed using this system.

Options available:

Body colour

Body colour

Body colour

Body colour

Body colour

Body colour

Track connectors

Track connectors

Specification:

1-Circuit

1-Circuit

IP rating

IP rating

Recessed

Recessed

Joinable

Joinable

3-Circuit Track 230V Recessed product selector

Select your options from the dropdowns in the filter row to create your product code.

Filter results
Clear Filters

Key:

Add to Product Comparison

Add to my Illuma Project

Add to my Illuma Favourites

IES File

IES File

LDT File

LDT File

PDF Icon

Technical Data Sheet

No.Product CodeTypeProduct NameBody ColourDownloads
1TSF4100-WH

Track3-Circuit Recessed Track-White-230V-3.2ft/1000mm-(Dead End not included)WhitePDF
2TSF4100-BL

Track3-Circuit Recessed Track-Black-230V-3.2ft/1000mm-(Dead End not included)BlackPDF
3TSF4100-SG

Track3-Circuit Recessed Track-Silver Grey-230V-3.2ft/1000mm-(Dead End not included)Silver GreyPDF
4TSF4200-WH

Track3-Circuit Recessed Track-White-230V-6.5ft/2000mm-(Dead End not included)WhitePDF
5TSF4200-BL

Track3-Circuit Recessed Track-Black-230V-6.5ft/2000mm-(Dead End not included)BlackPDF
6TSF4200-SG

Track3-Circuit Recessed Track-Silver Grey-230V-6.5ft/2000mm-(Dead End not included)Silver GreyPDF
7TSF4300-WH

Track3-Circuit Recessed Track-White-230V-9.8ft/3000mm-(Dead End not included)WhitePDF
8TSF4300-BL

Track3-Circuit Recessed Track-Black-230V-9.8ft/3000mm-(Dead End not included)BlackPDF
9TSF4300-SG

Track3-Circuit Recessed Track-Silver Grey-230V-9.8ft/3000mm-(Dead End not included)Silver GreyPDF
10TSV12

Bending ToolBending tool to shape conductors when the track has been cut-PDF
11TS11-WH

Live EndsRight Live End-White-Incoming Mains End FeedWhitePDF
12TS11-BL

Live EndsRight Live End-Black-Incoming Mains End FeedBlackPDF
13TS12-WH

Live EndsLeft Live End-White-Incoming Mains End FeedWhitePDF
14TS12-BL

Live EndsLeft Live End-Black-Incoming Mains End FeedBlackPDF
15TS41-WH

Dead EndsDead End-WhiteWhitePDF
16TS41-BL

Dead EndsDead End-BlackBlackPDF
17TS14-WH

Centre FeedCentre Feed-White-(Suitable for incoming mains)WhitePDF
18TS14-BL

Centre FeedCentre Feed-Black-(Suitable for incoming mains)BlackPDF
19TS21-WH

ConnectorsStraight Connector-White-(no extra length after insertion)WhitePDF
20TS21-BL

ConnectorsStraight Connector-Black-(no extra length after insertion)BlackPDF
21TS34-WH

ConnectorsL' Connector-White-(Suitable for incoming mains)WhitePDF
22TS34-BL

ConnectorsL' Connector-Black-(Suitable for incoming mains)BlackPDF
23TS35-WH

ConnectorsL' Connector-White-(Suitable for incoming mains)WhitePDF
24TS35-BL

ConnectorsL' Connector-Black-(Suitable for incoming mains)BlackPDF
25TS38-WH

ConnectorsX' Connector-White-(Suitable for incoming mains, requires 2 live feeds)WhitePDF
26TS38-BL

ConnectorsX' Connector-Black-(Suitable for incoming mains, requires 2 live feeds)BlackPDF
27TS36-WH

ConnectorsT' Connector-White-(Suitable for incoming mains)WhitePDF
28TS36-BL

ConnectorsT' Connector-Black-(Suitable for incoming mains)BlackPDF
29TS37-WH

ConnectorsT' Connector-White-(Suitable for incoming mains)WhitePDF
30TS37-BL

ConnectorsT' Connector-Black-(Suitable for incoming mains)BlackPDF
31TS39-WH

ConnectorsT' Connector-White-(Suitable for incoming mains)WhitePDF
32TS39-BL

ConnectorsT' Connector-Black-(Suitable for incoming mains)BlackPDF
33TS40-WH

ConnectorsT' Connector-White-(Suitable for incoming mains)WhitePDF
34TS40-BL

ConnectorsT' Connector-Black-(Suitable for incoming mains)BlackPDF
35TS23-WH

ConnectorsFlexible Connector-White-0 to 180WhitePDF
36TS23-BL

ConnectorsFlexible Connector-Black-0 to 180BlackPDF
37TS24-WH

ConnectorsAdjustable Connector-White-60 to 300WhitePDF
38TS24-BL

ConnectorsAdjustable Connector-Black-60 to 300BlackPDF
39TSF10-WH

CoverRecessed Live End Cover-WhiteWhitePDF
40TSF10-BL

CoverRecessed Live End Cover-BlackBlackPDF
41TSF30-WH

CoverRecessed Cover Plate-WhiteWhitePDF
42TSF30-BL

CoverRecessed Cover Plate-BlackBlackPDF
43TS29-WH

Track Adaptors3-Circuit Switched Global Track Adaptor-White-pre wired with 1500mm cableWhitePDF
44TS29-BL

Track Adaptors3-Circuit Switched Global Track Adaptor-Black-pre wired with 1500mm cableBlackPDF
45TS32-WH

Track Adaptors3- Circuit Switched Global Track Adaptor-White-with ring-pre wired with a 1500mm cable (5kg max load)WhitePDF
46TS32-BL

Track Adaptors3- Circuit Switched Global Track Adaptor-Black-with ring-pre wired with a 1500mm cable (5kg max load)BlackPDF

Sorry, no results please try again using the Advanced Product Search or call our sales team.

You may also be interested in

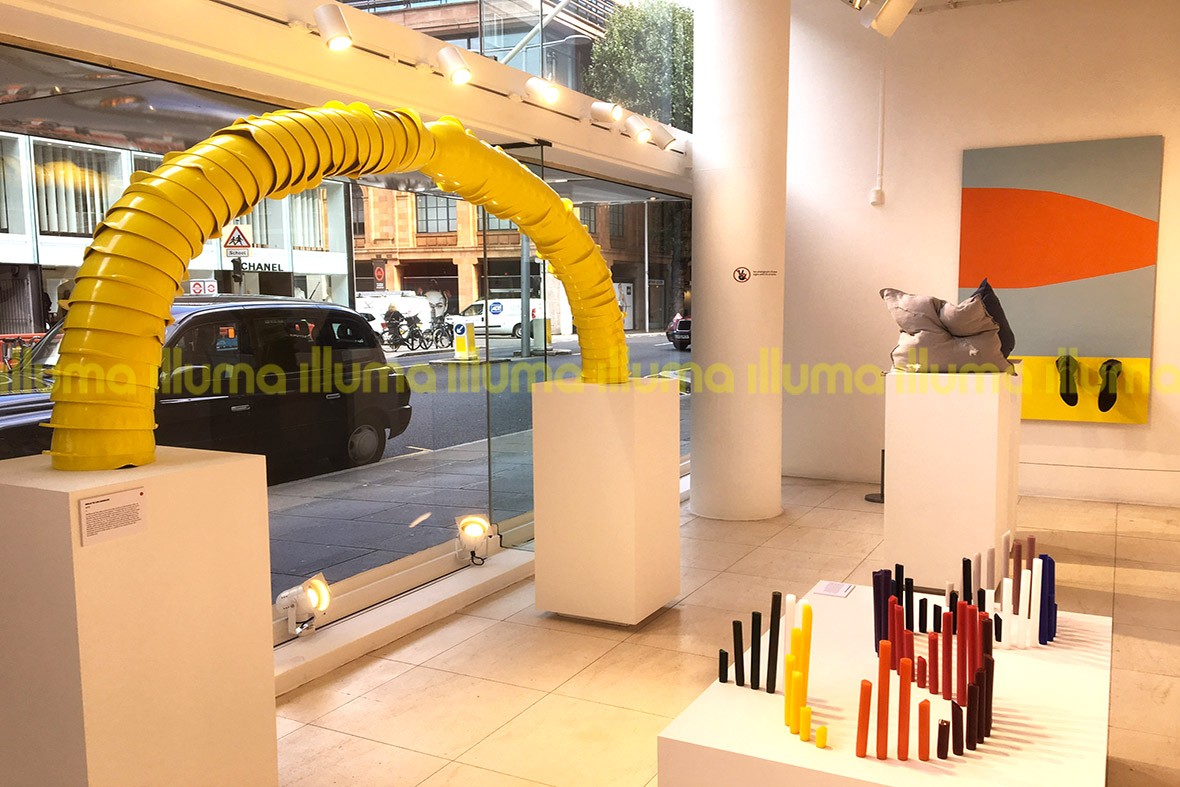

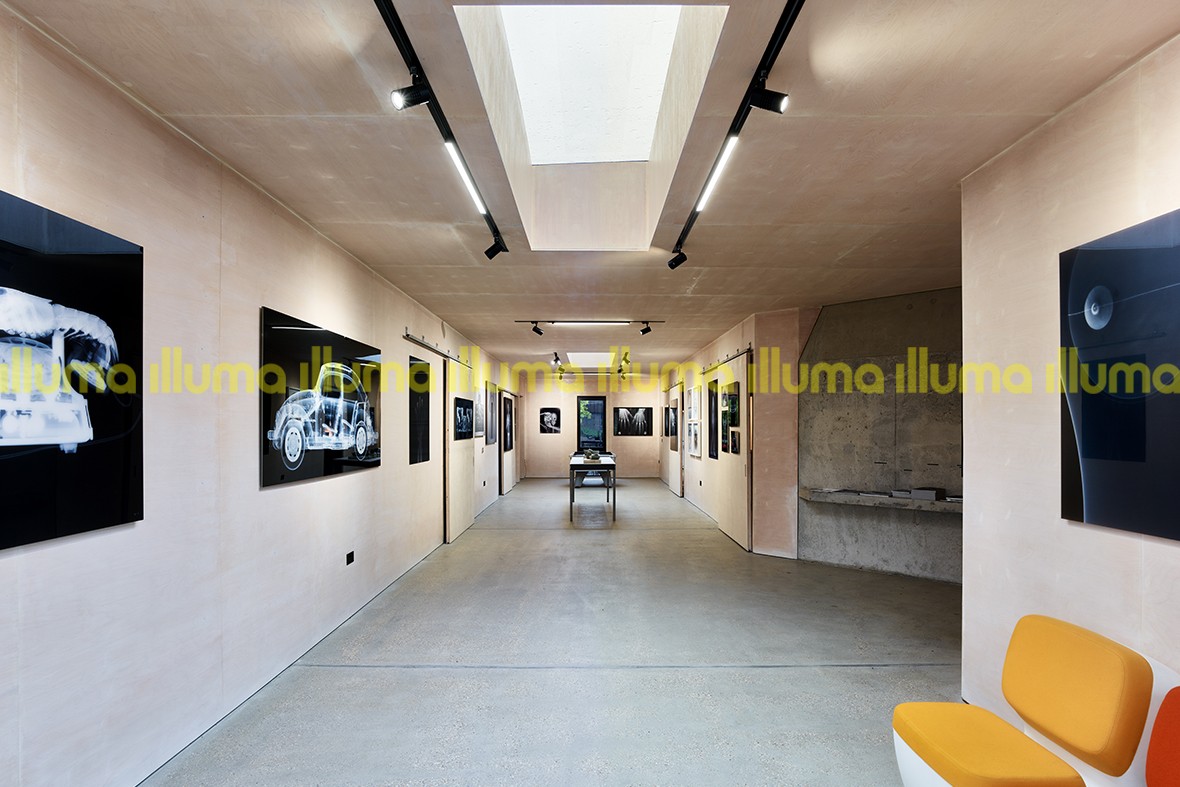

Our latest 3-Circuit Track 230V Recessed installations
