1-Circuit Track 230V / 16A Mains voltage track, connector and accessory system. Ideal for applications where spotlights may need to be frequently added or removed.

1-Circuit Track 230V
1-Circuit Track - White
1-Circuit Track 230V
1-Circuit Track - Black
1-Circuit Track 230V
1-Circuit Track - Silver Grey
1-Circuit Track 230V
Live End - T38
1-Circuit Track 230V
Centre Feed - T39
1-Circuit Track 230V
Dead End - TDE1
1-Circuit Track 230V
Straight Connector - T23
1-Circuit Track 230V
Adjustable Connector 90 or 180 - T24
1-Circuit Track 230V
Flexible Connector - T20
1-Circuit Track 230V
T Connector - T25
1-Circuit Track 230V
X Connector - T26
1-Circuit Track 230V
Track Adaptor - T29
1-Circuit Track 230V
Track Adaptor with Ring - T32

Product details & features

The 1-Circuit 230V track lighting system is the ideal choice for retail lighting, commercial lighting, leisure lighting, restaurant lighting, museum lighting and display lighting.

  • 1-Circuit 230V track features metal to metal connections to optimise earthing.
  • 1-Circuit 230V track is rated at 16A, giving a maximum lamp load of 3800W per track circuit (e.g. 76 x 50W spotlights).
  • 1-Circuit 230V track does not come with a Live End. Live Ends must be ordered separately.
  • Figure of ‘8’ patterns cannot be constructed using this system.

Options available:

Body colour

Body colour

Body colour

Body colour

Body colour

Body colour

Track connectors

Track connectors

Specification:

1-Circuit

1-Circuit

IP rating

IP rating

Surface mount

Surface mount

Suspended

Suspended

Joinable

Joinable

1-Circuit Track 230V product selector

Select your options from the dropdowns in the filter row to create your product code.

Filter results
Clear Filters

Key:

Add to Product Comparison

Add to my Illuma Project

Add to my Illuma Favourites

IES File

IES File

LDT File

LDT File

PDF Icon

Technical Data Sheet

No.Product CodeTypeProduct NameBody ColourDownloads
1T4-WH

Track1-Circuit Track-White-230V-4ft/1115mm-inc Dead EndWhitePDF
2T4-BL

Track1-Circuit Track-Black-230V-4ft/1115mm-inc Dead EndBlackPDF
3T4-SG

Track1-Circuit Track-Silver Grey-230V-4ft/1115mm-inc Dead EndSilver GreyPDF
4T8-WH

Track1-Circuit Track-White-230V-8ft/2335mm-inc Dead EndWhitePDF
5T8-BL

Track1-Circuit Track-Black-230V-8ft/2335mm-inc Dead EndBlackPDF
6T8-SG

Track1-Circuit Track-Silver Grey-230V-8ft/2335mm-inc Dead EndSilver GreyPDF
7T12-WH

Track1-Circuit Track-White-230V-12ft/3555mm-inc Dead EndWhitePDF
8T35(3000)

SuspensionsAdjustable Suspension Wire-3000mm-inc bracket & fixings-PDF
9T35(6000)

SuspensionsAdjustable Suspension Wire-6000mm-inc bracket & fixings-PDF
10T33-WH(500)

SuspensionsSuspension Rod-White-500mmWhitePDF
11T33-BL(500)

SuspensionsSuspension Rod-Black-500mmBlackPDF
12T33-SG(500)

SuspensionsSuspension Rod-Silver Grey-500mmSilver GreyPDF
13T33-WH(1000)

SuspensionsSuspension Rod-White-1000mmWhitePDF
14T33-BL(1000)

SuspensionsSuspension Rod-Black-1000mmBlackPDF
15T33-SG(1000)

SuspensionsSuspension Rod-Silver Grey-1000mmSilver GreyPDF
16T37F

T Bar AttachmentT Bar attachment clip for tiles that lie flush with a 25mm T bar-PDF
17T38-WH

Live EndsLive End-White-Incoming Mains End FeedWhitePDF
18T38-BL

Live EndsLive End-Black-Incoming Mains End FeedBlackPDF
19T38-SG

Live EndsLive End-Silver Grey-Incoming Mains End FeedSilver GreyPDF
20T39-WH

Centre FeedCentre Feed-White-(Not suitable for suspended track) c/w dead endWhitePDF
21T39-BL

Centre FeedCentre Feed-Black-(Not suitable for suspended track) c/w dead endBlackPDF
22TDE1-WH

Dead EndsDead End-White-inc fixing screwWhitePDF
23TDE1-BL

Dead EndsDead End-Black-inc fixing screwBlackPDF
24TDE1-SG

Dead EndsDead End-Silver Grey-inc fixing screwSilver GreyPDF
25T23-WH

ConnectorsStraight Connector-WhiteWhitePDF
26T23-BL

ConnectorsStraight Connector-BlackBlackPDF
27T23-SG

ConnectorsStraight Connector-Silver GreySilver GreyPDF
28T20-WH

ConnectorsFlexible Connector-White-0 to 158WhitePDF
29T20-BL

ConnectorsFlexible Connector-Black-0 to 158BlackPDF
30T24-WH

ConnectorsAdjustable Connector-White-90 or 180-(Suitable for incoming mains)WhitePDF
31T24-BL

ConnectorsAdjustable Connector-Black-90 or 180-(Suitable for incoming mains)BlackPDF
32T25-WH

ConnectorsT' Connector-White-dual polarity-(Suitable for incoming mains)WhitePDF
33T25-BL

ConnectorsT' Connector-Black-dual polarity-(Suitable for incoming mains)BlackPDF
34T26-WH

ConnectorsX' Connector-White-(Suitable for incoming mains, requires two live ends)WhitePDF
35T26-BL

ConnectorsX' Connector-Black-(Suitable for incoming mains, requires two live ends)BlackPDF
36T29-WH/S

Track Adaptors1-Circuit Switched Track Adaptor-White-pre wired with 1500mm cableWhitePDF
37T29-BL/S

Track Adaptors1-Circuit Switched Track Adaptor-Black-pre wired with 1500mm cableBlackPDF
38T32-WH/S

Track Adaptors1-Circuit Switched Track Adaptor-White-with ring-pre wired with 1500mm cable (5kg max load)WhitePDF
39T32-BL/S

Track Adaptors1-Circuit Switched Track Adaptor-Black-with ring-pre wired with 1500mm cable (5kg max load)BlackPDF

Sorry, no results please try again using the Advanced Product Search or call our sales team.

You may also be interested in

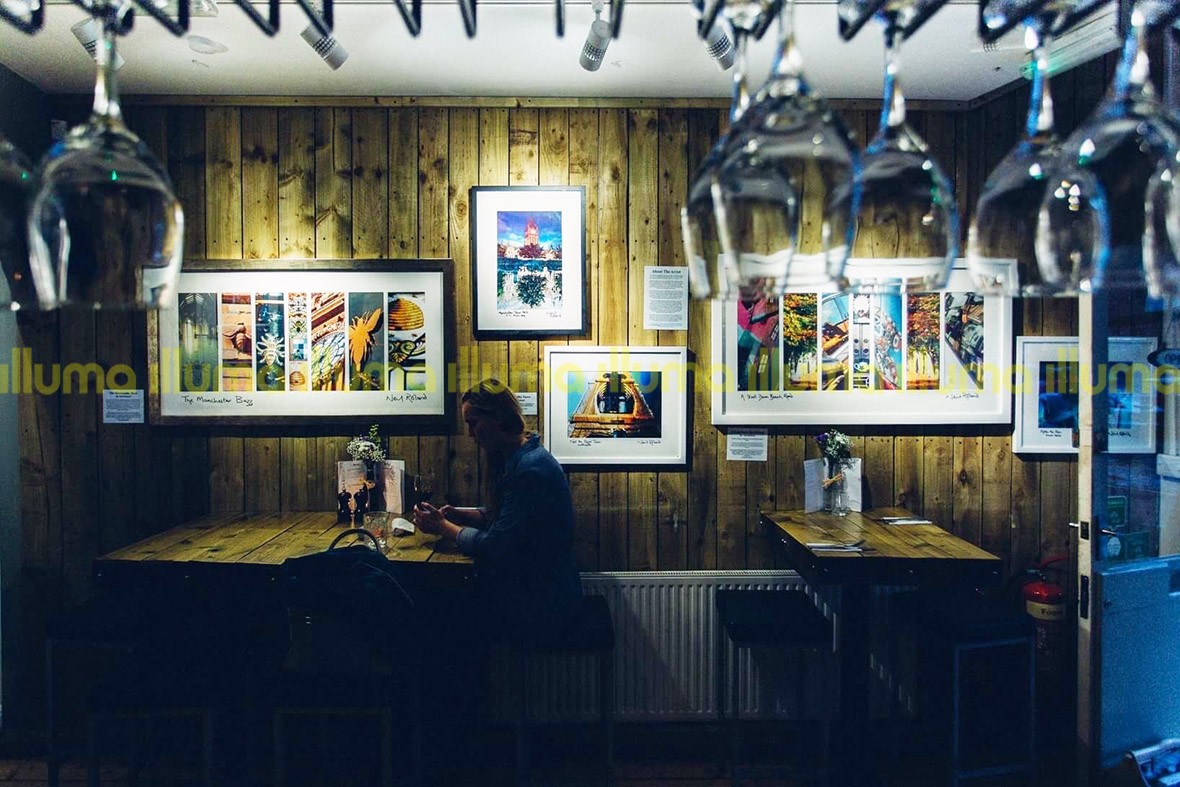

Our latest 1-Circuit Track 230V installations
